Data Radios
4RF Data Radios
Reliable radio infrastructure. We are proud to be associated with 4RF in the provision and support of their state of the art data radio solutions.
Microhard Systems
Microhard Systems range of data radios. These radios offer outstanding performance and extremely cost effective solutions.
Schneider Electric
For dependable professional data radio communications in SCADA and Telemetry systems at the lowest possible cost, the solution is Schneider's MR450.
Gatetel Telit GPRS Modem
The GT-HE910-EUD is a complete Cellular Terminal solution for GSM/UMTS applications. Based on the Telit JE-910-EUD Module.
4RF Data Radios
Miri Technologies South Africa and 4RF share a commitment to the provision of robust and totally reliable radio infrastructure. We are therefore proud to be associated with 4RF in the provision and support of their state of the art data radio solutions.
4RF Australia provides licensed, sub 3 GHz radio communications equipment for critical infrastructure applications. The Aprisa SR family of smart point-to-multipoint radios, available in VHF and UHF frequency bands, provides secure communications for telemetry and SCADA applications. Both radios support serial and Ethernet traffic for a future-proof approach when migrating from serial to IP. The Aprisa SR offers up to 19.2 kbit/s capacity and the Aprisa SR+ provides up to 120 kbit/s capacity for more data intensive applications. Both products provide industry-leading security, reliability and incorporate unique traffic management techniques for maximum efficiency and performance in the real world. The Aprisa XE point-to-point microwave link, available in ten frequency bands between 300 MHz and 2.7 GHz, provides long distance, carrier-class communications for challenging applications such as offshore linking or long distance pipeline monitoring.
Aprisa
Aprisa SR
Topology
Frequency bands
Channel sizes
Data rate
Output power
Point-to-multipoint; repeater
136-174 MHz, 400-470 MHz
12.5 kHz, 25kHz
9.6 kbps in 12.5kHz, 19.2kbps in 25 kHz
0.01 – 5.0W
Aprisa SR Plus
Topology
Frequency bands
Channel sizes
Gross Data rate: QPSK
Gross Data rate: 64 QAM
Output power
Point-to-multipoint; repeater
400-470 MHz
12.5 kHz, 25kHz (software selectable)
20 kbps in 12.5kHz, 40 kbps in 25 kHz
60 kbps in 12.5 kHz, 120 kbps in 25 kHz
0.01 – 10.0W

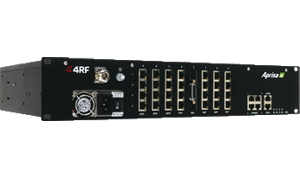

Aprisa XE
Topology
Frequency bands/capacity
Modulation
Capacity
Long Haul Point-to-Point Links.
400 MHz: 400-471 MHz 56 kbit/s – 944 kbit/s
900 MHz: 928-960 MHz 136 kbit/s – 1112 kbit/s
2.0 GHz: 1900-2300 MHz 1592 kbit/s – 65.4 Mbit/s
QPSK, 16 QAM, 32 QAM, 64 QAM, 128 QAM
56 kbit/s minimum, 65.4 Mbit/s maximum
Microhard Systems
Miri South Africa is proud to be able to offer the extensive Microhard Systems range of data radios. These radios offer outstanding performance and extremely cost effective solutions.
Microhard Systems Inc. specialises in the design and manufacture of long range robust wireless data equipment. Their continuous innovation and unparralleled product performance has earned them a trusted name in the wireless industry. Microhard also offers a range of OEM level products as are widely used by Miri Technologies in our wireless Monitoring and Control solutions.
All of Microhard’s OEM and packaged products are rigorously tested during the production process to ensure reliable performance over a wide temperature range.
Microhard Systems
VIP4G - 4G LTE Cellular Ethernet/Serial Gateway and WIFI
- Wi-Fi + Cellular
- 802.11a/b/g/n
- Ethernet/Serial Gateway
The VIP4G provides a rugged, industrial wireless solution using 4G LTE network infrastructure for critical data communications. The VIP4G provides simultaneous network connections for 802.11a/b/g/n WiFi devices, 4 x 10/100/1000 Ethernet ports, 4 x Digital I/O, and a RS232/RS485 port, resulting in a communication device that can be deployed in many applications.
VIP2400 - Rugged 2.4 GHz OFDM Broadband Ethernet / Serial Gateway
- Wi-Fi 802.11b/g Ethernet/Serial Gateway Up to 54Mbps Data Rate
- Up to 54Mbps Data Rate
- Ethernet/Serial Gateway
In response to industry demands for greater data throughput, the VIP2400 takes long range wireless network communications to an entirely new level. The VIP2400 provides dual Ethernet ports for WAN and LAN connectivity, as well as extensive serial communications that supports any RS232/RS485/RS422 device.
L400 - 410-480 MHz Licenced Narrowband Wireless Modem
- Licensed Narrowband
- 410-480MHz
- 6.25,12.5,25KHz Channel
Operating at a 19.2kbps wireless link rate and employing GMSK technology, the L400-ENC provides both a long range and robust communications link which can carry a variety of traffic. Give us a call or fill out our RFQ form below for more information.
IPn920 - Miniature OEM Wireless Ethernet/Serial/USB Gateway
- Spread Spectrum
- 902-928MHz
- Ethernet Bridge
The Nano IP Series adds Ethernet capability to the miniature, yet powerful Nano range of products. This incredibly small Ethernet Bridge and Serial Gateway provides robust wireless communication of simultaneous serial data and IP/Ethernet packets to extend serial data and IP networks.
Schneider Electric
For dependable professional data radio communications in SCADA and Telemetry systems at the lowest possible cost, the solution is Schneider’s MR450.
Highly versatile, the compact MR450 has price/performance optimised versions to suit the widely varying needs of such typical applications as fresh or waste water management and industrial control automation. Rugged construction and full -30C to +60C operational capability make it suitable for the harshest environments.
Even though it comes at a low price, the simplex/half duplex MR450 has the most commonly sought-after features, yet is still easy to configure and use. There additional system features may be required, Trio DataCom offers it’s compatible E Series – the world’s most advanced family of data radio products.
The MR450 is complemented by matching full duplex base and repeater stations, including a redundant hot standby version. Local and remote diagnostics are optionally available to assist in commissioning and troubleshooting.

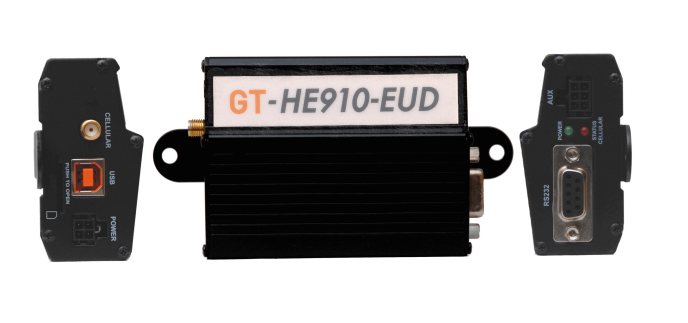

Gatetel Telit GPRS Modem
The GT-HE910-EUD is a complete Cellular Terminal solution for GSM/UMTS applications. Based on the Telit JE-910-EUD Module.
This modem is ideally suited for applications where radio communications are not possible due to terrain restraints, or as redundancy communications over a radio network.
GT-HE910-EUD
OPTION: PIC16F1824 Microcontroller
Frequency bands
Power supply
ADC and GPIO inputs
Communication
Antenna
For Modem ON/OFF and Watchdog
GSM: 850/900/1800/1900MHz
UMTS/HSPA+: 850/900/2100MHz
Single supply voltage 6V DC to 55V DC
connector 4 pin micro-fit 3mm
Two outputs optocouplers open collector drive 100ma
Two inputs optocouplers, 0-55v
One ADC 10 bit , 0-55V
connector 6 pin micro-fit 3mm
Modem Full RS232, connector D-Type 9pin (DB-9)
Modem USB, Connector USB Type B High retention
GSM/UMTS via SMA connector
